Refinery
Refinery / Raffinerie / Raffinería / 精炼厂 / Рафинерия
1. Introduction: The Necessity and Objective of This Page
In Persian-speaking regions and among Iranian audiences, when the term refinery is searched, it is often associated with oil, gas, or petrochemical processes. However, the concept of a refinery is much broader and extensively used in metal industries—particularly in the refining and purification of precious metals such as gold.
The primary objectives of this page are:
- To appear as a prominent search result on Google when someone searches for "refinery," even if their main interest is in oil refining.
- To provide users with a comprehensive understanding of a gold refinery, detailing the process from raw input to producing high-purity bullion.
- To leverage SEO-optimized content, keyword structure, and user intent, enabling Google to show this page alongside oil refinery results, yet targeting audiences interested in metal refining.
In this page, whenever the term refinery is used, it specifically refers to the refining and purification of precious metals, primarily gold—not petroleum or petrochemical products.
2. Multiple Definitions and Conceptual Understanding of "Refinery"
To establish a solid foundation, we present multiple perspectives:
2.1 General Industrial Definition
A refinery is a facility that purifies raw materials using physical, chemical, or electromechanical methods, removing impurities and producing a refined product. This definition applies across various industries, including oil, sugar, vegetable oils, and metals.
2.2 Definition in Precious Metals
A Metal Refinery or Precious Metal Refinery is a plant where inputs such as doré bars, scrap metal, or metal powders are processed to remove impurities, producing pure metal outputs.
A Gold Refinery is a specialized type of refinery dedicated to gold, where inputs can include old jewelry, gold scrap, or low-purity bullion.
2.3 Related Technical Terms
- Refining Process Unit: Units involved in refining, such as smelting or electrolysis.
- Refining Reaction: Chemical or electrochemical reactions that remove impurities.
- Refining Efficiency: The efficiency of impurity removal.
- Refining Yield: The proportion of pure output relative to input.
2.4 Proposed Definition for This Site
For the purpose of this website, refinery is defined as:
A systematic, scientific, and industrial process for refining and purifying precious metals, particularly gold, to produce bullion or a final product of the highest possible purity, while maintaining global quality standards.
This definition ensures that any user encountering the term refinery on this page understands it in the context of gold refining.
Refinery (Persian)
Gold Refinery Patent Reference
Gold Refinery Business Plan & Feasibility Guide 2025
Gold Refinery & Exploration Consultancy | Laka Gold
Gold Refinery Services in Iran – One-Tenth Global Cost
Refinery – Definition, Concepts, and Overview
Laka Gold (Labkhand Kaghazi) | From Exploration to Gold Refinery & Mining Services
Small & Mini Gold Refinery Solutions
Turnkey Gold Refinery Solutions | LBMA Certified Ready-to-Operate Gold Refinery Plant
Gold Refinery Turnkey Platform
Modular Gold Refinery Platforms | Turnkey Gold Refinery Systems by LAKA.ir
Turnkey Modular Gold Refinery Platform – Ready-to-Install
Small-Scale Green Gold Refinery Solutions
Online Gold Refinery Design & Consulting -LAKA GOLD
Exclusive Sale of the Gold Refinery Platform – Top-Ranked on Google
Gold Refinery Process: From Ore to Investment-Grade Bullion
-Sample Gold Refinery Contract Download PDF & Word - Mobile
پالایشگاه طلا | فرآوری، روش‌ها، تجهیزات و گالری تصاویر (Gold Refinery)
-Sample Gold Refinery Contract Download PDF & Word - Mobile
Sample Gold Refinery Contract – Downloadable Draft
Quantum Gold Refinery 4025 – Advanced Future Methods, Applications & Interplanetary Processing
Advanced Gold & Precious Metals Refining Technologies | Modern Refinery Solutions
Gold Refinery Plant Cost 2025 – Real Estimation with Laka Gold Package
Advanced Gold & Precious Metals Refining Technologies | Modern Refinery Solutions

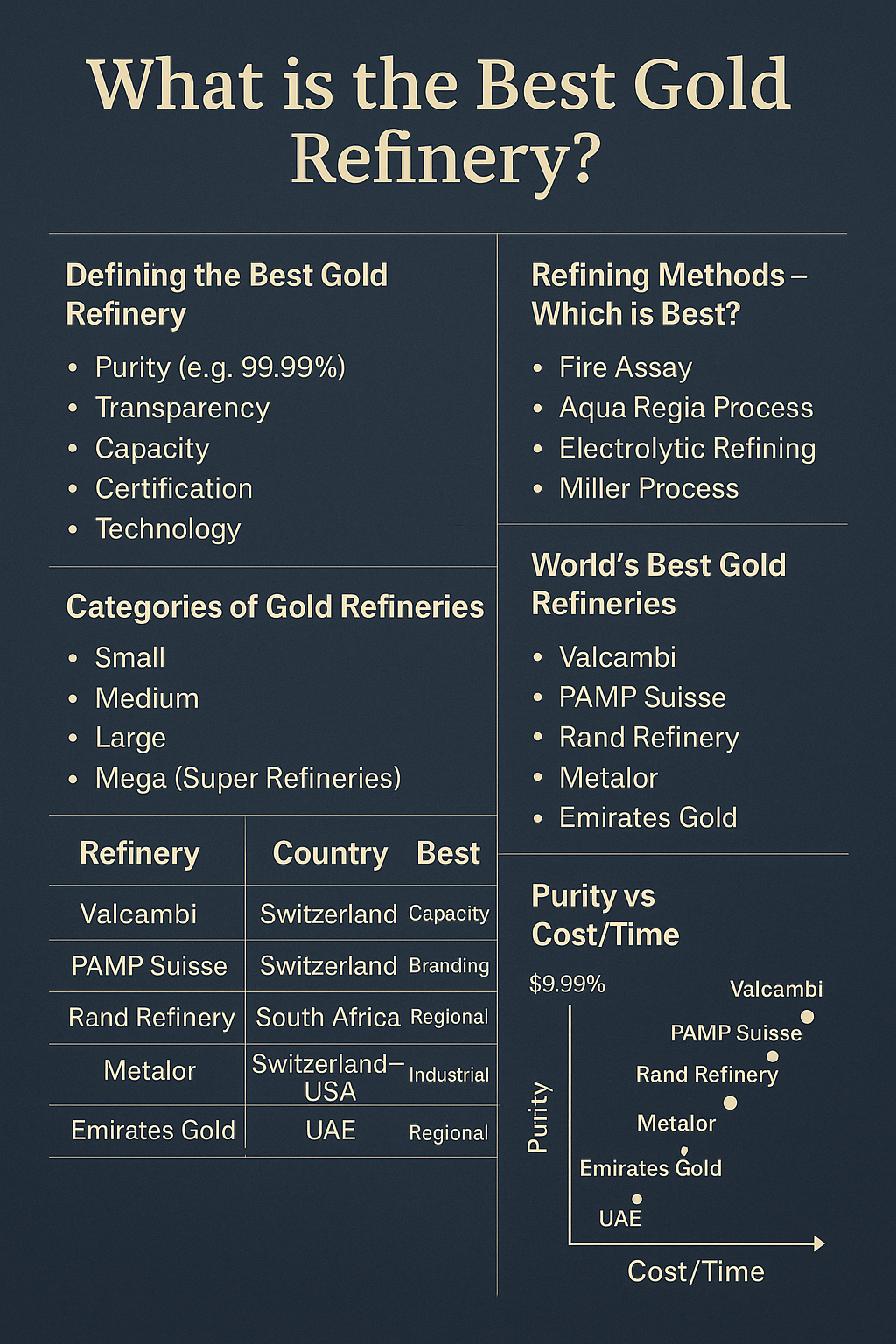

? What is the Best Gold Refinery
بهترین ریفاینری طلا | What is the Best Gold Refinery
Mini vs Industrial Gold Refinery | Comparison, Price & ROI
ریفاینری شمش طلا | Gold Bullion Refinery
راه‌اندازی و احداث ریفاینری کوچک طلا و آزمایشگاه ری‌گیری | Mini Gold Refinery & Assay Laboratory
«اولین Mini Gold Refinery طلا‌فروشی‌ها در جهان؛ Compact, Trusted, Profitable»
Gold Refinery Website – Services, Training, Analysis, Profit Calculation
Алт цэвэршүүлэх үйлдвэр | Gold Refinery Website
موقع ويب لمصنع تكرير الذهب | Gold Refinery Website
Compact Mini Gold Refinery for Workshops & Shops | Scientific & Economical Gold Refining Unit
Gold Refinery Standards & Certification Guide — Word + PDF
«راه‌اندازی ریفاینری کوچک | Mini Gold Refinery ویژه طلافروشان»
Green Gold Refinery | Comprehensive Guide
ریفاینری طلا سبز | Green Gold Refinery
Green Gold Refinery | Comprehensive Guide
مشارکت بین‌المللی ریفاینری طلا | International Gold Refinery Collaboration – شبکه و جدول
Contact Gold Refinery – Iran & Worldwide | Laka Gold
3. Historical Overview of Gold Refining
3.1 Ancient Period
Gold has been known since ancient times. Civilizations such as Egyptians, Mesopotamians, Indians, and Chinese extracted, smelted, and used gold. Refining techniques included cupellation, where gold or silver was burned with lead, which absorbed impurities as oxides while leaving the gold behind.
3.2 Medieval and Pre-Industrial Era
With the gradual advancement of chemistry and metallurgy, particularly in Europe and the Middle East, more precise chemical refining methods emerged, enabling higher-purity gold production.
3.3 Industrial Revolution and 19th Century
- Miller Process (1867): Chlorine gas is bubbled through molten gold, forming chlorides with impurities, which separate from the gold. Purity could reach ~99.5%.
- Wohlwill Process (1874): Utilizes electrochemistry. Gold is cast as an anode in an electrolytic bath; pure gold deposits onto the cathode. This process can achieve 99.999% purity.
3.4 Modern Era
Today, gold refining often involves a combination of methods:
- Aqua Regia (mixture of nitric and hydrochloric acids)
- Chemical-electrochemical hybrid processes
- Electrochemical impedance monitoring
- Acid and gas recovery systems
One key standard in the gold market is LBMA (London Bullion Market Association) certification, which ensures international trust in gold bullion quality.
4. Conceptual Flow of Gold Refining
The textual flowchart below outlines the typical gold refinery process:
Input (Doré Bars / Gold Scrap / Old Jewelry)
↓
Chemical Assay & Composition Analysis
↓
Initial Melting & Addition of Flux
↓
Primary Chemical Refining (e.g., Chlorination / Acid Treatment)
↓
Precipitation & Impurity Separation
↓
Electrochemical Refining (e.g., Wohlwill Process)
↓
Washing & Drying
↓
Quality Control & Final Assay
↓
Casting into Final Bullion
↓
Certification & Packaging
This schematic helps users understand the entire refining journey from raw input to final bullion.
5. Comparative Table of Common Gold Refining Methods
| Refining Method | Core Mechanism | Approx. Final Purity | Advantages | Limitations |
|---|---|---|---|---|
| Miller Process (Chlorination) | Bubbling Cl₂ gas into molten gold → impurities form chlorides | ~99.5% | Fast, low-cost, simple | Limited purity, precise control needed |
| Wohlwill Process (Electrochemical) | Dissolving gold at anode, deposition at cathode | Up to 99.999% | Ultra-high purity, highly precise | High cost, complex technology |
| Aqua Regia (Chemical) | Dissolving gold in HCl+HNO₃ mixture, slow precipitation | ~99.9%+ | Removes diverse impurities | Acid hazards, requires recovery |
| Cupellation / Lead Smelting | Lead absorbs impurities upon smelting and oxidation | Suitable as pre-refining | Simple, historical, initial processing | Produces lead, limited purity |
| Hybrid Method | Combination of chemical + electrochemical + physical | Up to 99.999% depending on design | Flexible, adaptable to varied inputs | Complex design, high cost, precise control needed |
6. Strategic Notes to Establish This Page as a Reference for "Refinery"
- Emphasize early in the text that this page is a specialized reference for metal refining, especially gold refining.
- Incorporate refinery in H1 and H2 tags with definitions.
- Include a detailed comparison between oil refineries and gold refineries.
- Use tables, flowcharts, and conceptual diagrams for clarity.
- Create an FAQ section using the keyword "refinery".
- Implement FAQ and Article Schema for SEO.
- Link internally to related pages: gold refining processes, refinery equipment, startup guides.
- Reference reputable academic and international gold industry sources.
- Update content periodically with latest research and market news.
7. Draft FAQ
-
What is a refinery, and why is it focused on gold here?
Refinery refers to the purification and refining of materials; in this page, it is specific to gold, not oil. -
What is the difference between an oil refinery and a gold refinery?
Oil refining produces petroleum products, whereas gold refining purifies precious metal. -
Which gold refining method is the best?
Depends on input material, allowable cost, and target purity (e.g., Miller, Wohlwill, Aqua Regia). -
Is small-scale gold refining possible?
Yes, with laboratory equipment and safety precautions, though achieving ultra-high purity is challenging. -
How can we ensure refined bullion meets standards?
Through fire assay, advanced chemical analysis, and internationally recognized certification.
8. Technical Process of Gold Refining
8.1 Introduction to the Technical Process
Gold refining in a refinery is a multi-step, scientific process that transforms impure gold inputs (doré bars, metal scrap, or ore) into high-purity bullion (up to 99.99%). The process integrates several scientific disciplines:
- Inorganic chemistry
- Electrochemistry
- Thermal engineering
- Solid-state physics
- Quality control and material analysis
A gold refinery is not just a melting workshop—it is a complete system including a precision assay laboratory, safe industrial equipment, chemical ventilation systems, acid recovery units, and dust and wastewater management.
8.2 Major Sections in a Gold Refinery
8.2.1 Receiving & Pre-Treatment Unit
The first stage involves receiving raw materials: doré bars, gold scrap, or ore concentrates. Each batch is assigned an identification code, weight, and visual record.
Steps:
- Sampling – Small samples are taken from each input for chemical assay.
- Pre-Melting – Melting and homogenization to eliminate variations in composition.
- Assay – Determining gold content and associated elements (Ag, Cu, Pb, Pt, Pd, etc.).
8.2.2 Melting & Metallurgy Unit
- Furnaces: Induction furnaces, gas-fired furnaces, or crucible setups melt the gold.
- Flux additives: Borax, silica, nitrates help remove impurities into slag.
- Temperature: Gold melts at ~1064°C; operational temperatures are slightly higher for better mixing.
8.2.3 Chemical Refining Unit
Chemical methods are applied to purify gold:
a) Aqua Regia Method
- Mixture of hydrochloric acid and nitric acid (3:1 ratio).
- Dissolves gold; subsequent precipitation with chemicals like sodium metabisulfite or hydrazine returns gold to metallic form.
- Gold is washed, dried, and prepared for final casting.
b) Chlorination (Miller Process)
- Chlorine gas is blown over molten gold.
- Impurities such as silver, copper, platinum, and palladium form chlorides and are removed.
- Gold remains at the bottom of the furnace.
c) Electrolytic Refining (Wohlwill Process)
- Anode: Low-purity gold
- Cathode: High-purity gold sheet
- Electrolyte: Gold chloride solution
- Electric current dissolves gold from the anode and deposits it on the cathode.
- Final cathode deposits are washed and dried, achieving up to 99.999% purity.
8.3 Assay & Quality Control Unit
No refinery is complete without a certified Assay Laboratory. Key QC methods include:
| Method | Description | Application |
|---|---|---|
| Fire Assay | Melting sample with flux at high temperature | Most accurate traditional assay |
| ICP-MS (Plasma Mass Spectrometry) | Detects trace elements in ppm | Controls extremely low impurities |
| XRF (X-Ray Fluorescence) | Rapid, non-destructive elemental analysis | Quick process monitoring |
| Titration | Chemical concentration measurement | Checks chemical process solutions |
Final Bullion Labeling: Each gold bar receives a unique ID, batch number, production date, and operator signature.
9. Critical Equipment & Infrastructure
| Equipment Category | Example / Description | Importance |
|---|---|---|
| Furnaces | Induction, gas, or cupel furnaces | Melting & homogenization |
| Chemical Ventilation | Acid hoods, scrubbers, particle filters | Safety & pollution control |
| Acid Tanks | Polypropylene or borosilicate glass | Safe chemical reactions |
| Electrolysis Cells | Gold or titanium anode/cathode | Electrochemical refining |
| Filtration Systems | Filter press, polymer membranes | Solid-liquid separation |
| Precision Scales | Sensitivity 0.0001 g | Weight & purity control |
| Recovery Unit | Dust & filter collection | Recover valuable gold residues |
10. Safety & Environmental Measures in a Gold Refinery
Modern gold refineries follow industrial safety and environmental standards:
- Two-stage ventilation for chlorine and acid vapors
- Acid recycling with Acid Recovery Units
- Chemical wastewater treatment (pH control, precipitation)
- Gold dust recovery from air filters
- Operators wear acid-resistant gloves, suits, and eye protection
11. Global Comparison of Major Gold Refineries
| Country | Company / Refinery | Key Feature |
|---|---|---|
| Italy | Italimpianti Orafi | Specializes in Aqua Regia equipment |
| Switzerland | Metalor Technologies | LBMA certified, 99.999% purity |
| Germany | Heraeus Refining | Advanced, sustainable technology |
| India | MMTC-PAMP | Largest refinery in Asia |
| Canada | Royal Canadian Mint | Produces official bullion with national hallmark |
| China | China National Gold Group | Multiple gold refining sites |
| Japan | Tanaka Kikinzoku | Industrial & electronic gold production |
12. Translating “Refinery” in 70 Languages
| Language | Refinery | Language | Refinery |
|---|---|---|---|
| English | Refinery | French | Raffinerie |
| German | Raffinerie | Italian | Raffineria |
| Spanish | Refinería | Portuguese | Refinaria |
| Russian | Рафинерия | Chinese | 精炼厂 |
| Japanese | 精製所 | Korean | 정제소 |
| Arabic | مصفاة | Turkish | Rafineri |
| Hindi | रिफाइनरी | Urdu | ریفائنری |
| Greek | Διυλιστήριο | Dutch | Raffinaderij |
| Swedish | Raffinaderi | Norwegian | Raffineri |
| Finnish | Jalostamo | Danish | Raffinaderi |
| Polish | Rafineria | Czech | Rafinérie |
| Romanian | Rafinărie | Bulgarian | Рафинерия |
| Serbian | Рафинерија | Croatian | Rafinerija |
| Hungarian | Finomító | Slovenian | Rafinirnica |
| Indonesian | Kilang | Malay | Penapisan |
| Vietnamese | Nhà máy lọc | Thai | โรงกลั่น |
| Filipino | Pasilidad ng pagpino | Albanian | Rafineri |
| Georgian | გადამამუშავებელი ქარხანა | Armenian | Մաքրագործման գործարան |
| Azerbaijani | Emal zavodu | Kazakh | Тазарту зауыты |
| Uzbek | Tozalash zavodi | Tajik | Корхонаи тозакунӣ |
| Kurdish | پالێخانە | Pashto | تصفیې فابریکه |
| Malagasy | Toeram-pikarakarana | Swahili | Kiwanda cha kusafisha |
| Latin | Purificatorium | Icelandic | Hreinsistöð |
| Scottish Gaelic | Rèidhiche | Welsh | Purfaenfa |
13. Translating “Gold Refinery” in 70 Languages
| Language | Gold Refinery | Language | Gold Refinery |
|---|---|---|---|
| English | Gold Refinery | French | Raffinerie d’or |
| German | Goldraffinerie | Spanish | Refinería de oro |
| Russian | Золотой аффинажный завод | Arabic | مصفاة الذهب |
| Chinese | 黄金精炼厂 | Japanese | 金精製所 |
| Korean | 금 제련소 | Turkish | Altın Rafinerisi |
| Hindi | स्वर्ण रिफाइनरी | Urdu | سونے کی ریفائنری |
| Portuguese | Refinaria de Ouro | Italian | Raffineria d’Oro |
| Greek | Χρυσοχόο διυλιστήριο | Dutch | Goudraffinaderij |
14. The Role of Gold Refinery in Market and Investment Opportunities
14.1 Gold Refinery in Iran
Gold refineries in Iran are strategically important for:
- Upgrading local bullion production
- Creating investment opportunities for domestic and international investors
- Reducing dependency on imported refined gold
- Supporting the jewelry and electronics industry
A well-operated refinery can provide a high return on investment (ROI) by converting scrap, doré, or low-purity bullion into internationally certified bars.
14.2 Global Investment Opportunities
Globally, gold refineries offer opportunities in:
- Strategic partnerships with LBMA-certified refiners
- Establishing mini-refineries near mining sites to reduce transportation costs
- Advanced technology adoption (AI-assisted workflow, green chemistry, ESG compliance)
- Exporting refined bullion to international markets
Investors should consider CAPEX (capital expenditure), OPEX (operating costs), and expected throughput when evaluating refinery projects.
15. Comprehensive Gold Refinery Equipment Directory
| Category | Example / Description | Key Function |
|---|---|---|
| Melting Furnaces | Induction / Gas / Cupel | Gold melting & homogenization |
| Chemical Processing | Aqua Regia tanks, Chlorination units | Purification & impurity removal |
| Electrolysis | Anode & Cathode cells | High-purity electrochemical refining |
| Filtration Systems | Filter press, polymer membranes | Solid-liquid separation |
| Ventilation | Acid hoods, scrubbers | Safety & emissions control |
| Laboratory | Fire assay, ICP-MS, XRF | Quality control & certification |
| Recovery Units | Dust collectors, acid recovery | Environmental protection & material recovery |
| Casting & Packaging | Bullion molds, marking machines | Final product preparation & certification |
16. Advanced Technologies in Gold & Precious Metals Refining
Modern refineries integrate innovations for efficiency, sustainability, and precision:
- AI-driven process control: Monitors chemical reactions and electrolysis in real-time.
- Green chemistry methods: Minimize hazardous waste, recycle acids, and reduce energy consumption.
- Smart bullion labeling: Digital certificates with blockchain traceability.
- Nano-filtration & high-efficiency dust recovery: Maximizes precious metal recovery.
- Integrated ERP systems: Manages inventory, production, and logistics efficiently.
17. Gold Refinery Cost & Setup in 2025
17.1 Typical Capital Expenditure (CAPEX)
- Small-scale mini refinery: $500,000 – $1,200,000
- Medium-scale refinery (1-5 tons/day): $5,000,000 – $15,000,000
- Large refinery (10+ tons/day): $20,000,000+
17.2 Operating Costs (OPEX)
- Raw material procurement (scrap, doré, jewelry)
- Labor & technical staff salaries
- Energy & water consumption
- Consumables: acids, flux, electrodes
- Environmental management & waste treatment
17.3 Return on Investment
ROI depends on:
- Feedstock cost
- Refining efficiency & yield
- Market gold price fluctuations
- Certification (LBMA, ISO)
18. Mini Gold Refineries & Assay Laboratories
Mini Refineries are ideal for:
- Jewelers
- Small-scale miners
- Research laboratories
Features:
- Capacity: 10–100 kg/day
- Electrolytic or chemical refining methods
- Integrated assay lab for immediate quality control
- Lower CAPEX & OPEX compared to full-scale refinery
- Safer, compact design for urban or remote locations
19. Green & Smart Gold Refineries
19.1 Green Refinery Concepts
- Acid recycling systems
- Closed-loop water circuits
- Dust recovery and filtration
- Energy-efficient furnaces
19.2 Smart Gold Refinery
- AI-assisted workflow optimization
- Blockchain-based bullion traceability
- Predictive maintenance for furnaces & electrolysis units
- Automated chemical dosing & monitoring
These systems align with ESG (Environmental, Social, Governance) standards, supporting sustainability and corporate responsibility.
20. International Collaboration in Gold Refining
| Region | Key Partners / Networks | Objective |
|---|---|---|
| Europe | Swiss, German refiners | Technology exchange, LBMA certification |
| Asia | China, India, Japan | Process optimization, regional supply chain |
| Middle East | UAE, Turkey | Investment and logistics |
| North America | Canada, USA | Official minting, export compliance |
Collaboration helps refineries adopt global best practices, ensure quality, and expand market access.
21. Gold Refinery Workflow & Operational Steps
- Material Input: Doré bars, scrap, or ore concentrate
- Sampling & Assay: Determine gold content and impurities
- Pre-Melting: Homogenize batch and prepare for chemical/electrolytic refining
- Chemical Refining: Aqua Regia or Chlorination
- Electrolytic Refining: Wohlwill process for ultra-high purity
- Washing & Drying: Prepare bars for casting
- Final Assay & Quality Control: Fire assay, ICP-MS, XRF verification
- Casting & Packaging: Bullion molds, labeling, certification
- Certification & Shipping: LBMA or national standard approval
- Environmental & Safety Monitoring: Continuous emission, waste, and worker safety control
22. References & Resources
- LBMA Official Guidelines – London Bullion Market Association
- Metalor Technologies Technical Papers
- Heraeus Precious Metals Research
- International Precious Metals Institute (IPMI) Publications
- ISO 11426: Gold Assay and Refining Standards
- Aqua Regia and Miller Process Technical Manuals
23. Useful Links
Comprehensive Archive of Gold Refining Articles & Scientific Studies
- Includes operational data, international standards, case studies, and investment guides.
- Available in Persian & English.
Website: Laka Gold Refinery Portal
24. Summary
This page provides an all-inclusive reference on gold refineries, covering:
- Definitions and history of refining
- Technical processes and methods (chemical, electrolytic, hybrid)
- Key equipment and infrastructure
- Safety, environmental, and sustainability measures
- Cost analysis, investment opportunities, and mini-refinery setups
- Advanced technology and smart systems
- Global comparison, international collaboration, and certification standards
It aims to serve as a primary resource for researchers, engineers, investors, and jewelers, enabling deep understanding of gold refining and global best practices.
Web : www.laka.ir
Email : This email address is being protected from spambots. You need JavaScript enabled to view it.
Tel : +985137665005
Management: Mr. Alireza Sistanizadeh Aghdam
Mobile : +989016650528
Catalog (Download PDF)
-Sample Gold Refinery Contract Download PDF & Word - Mobile
